Smart control high bay

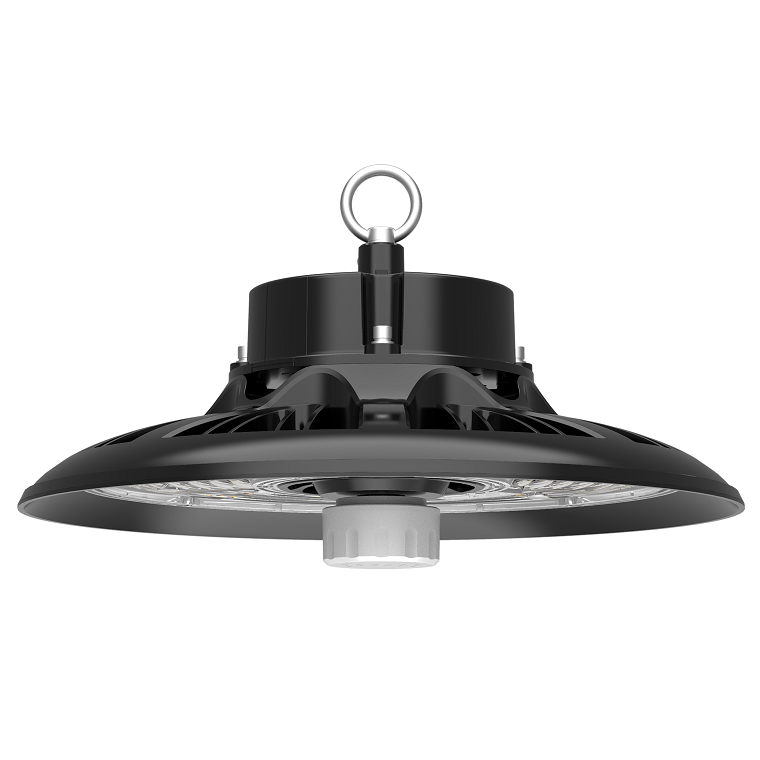

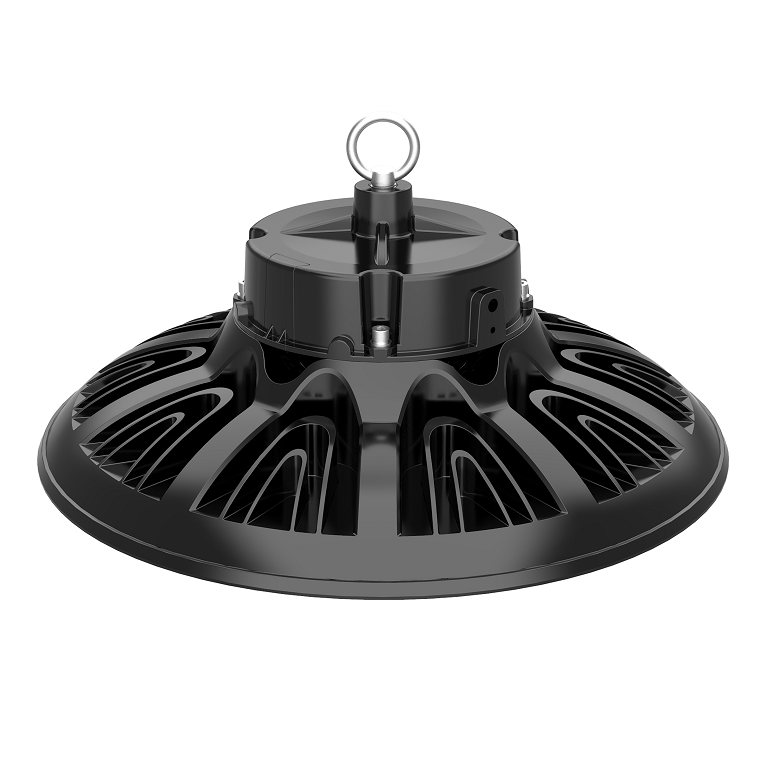

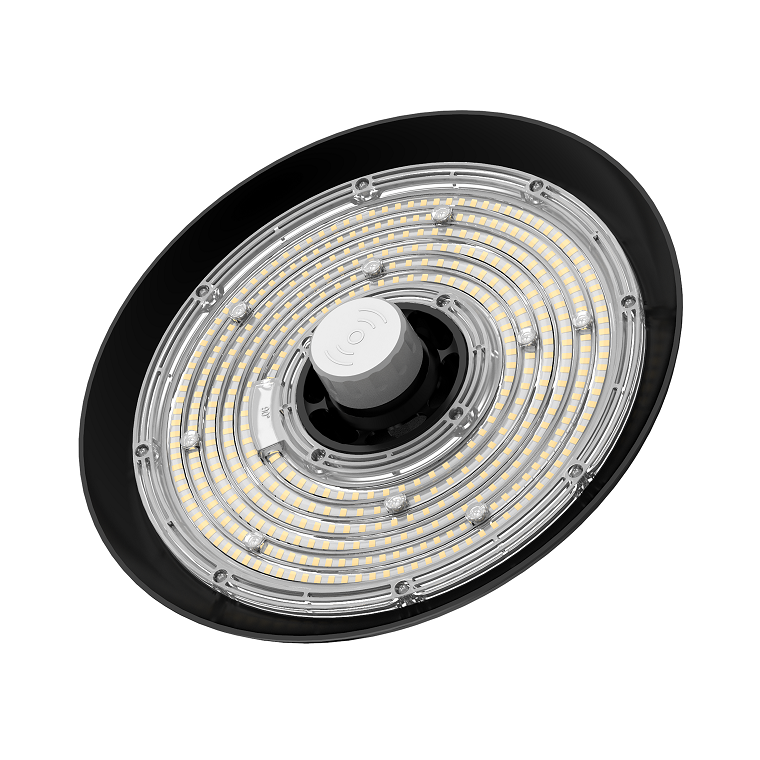

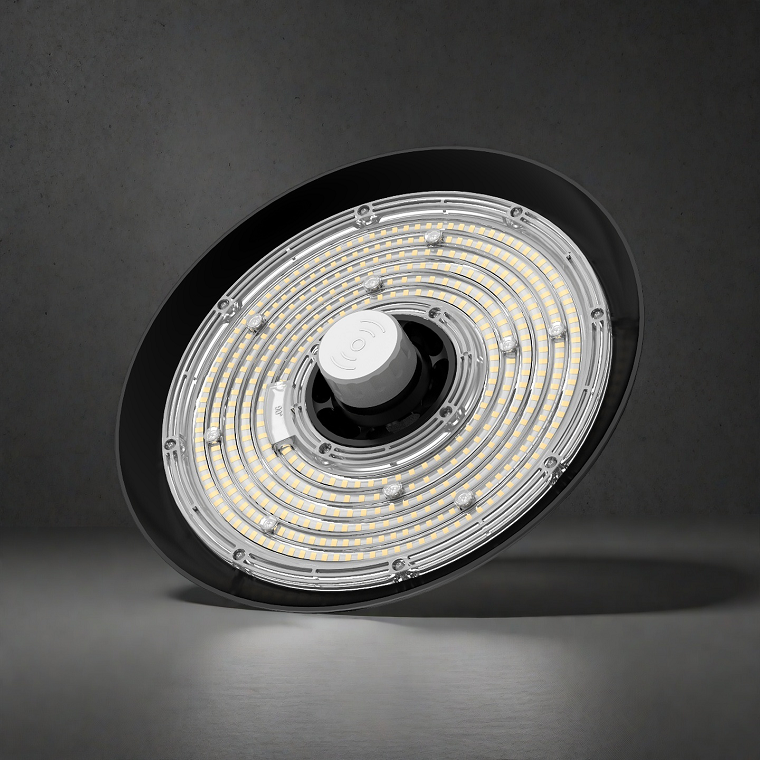

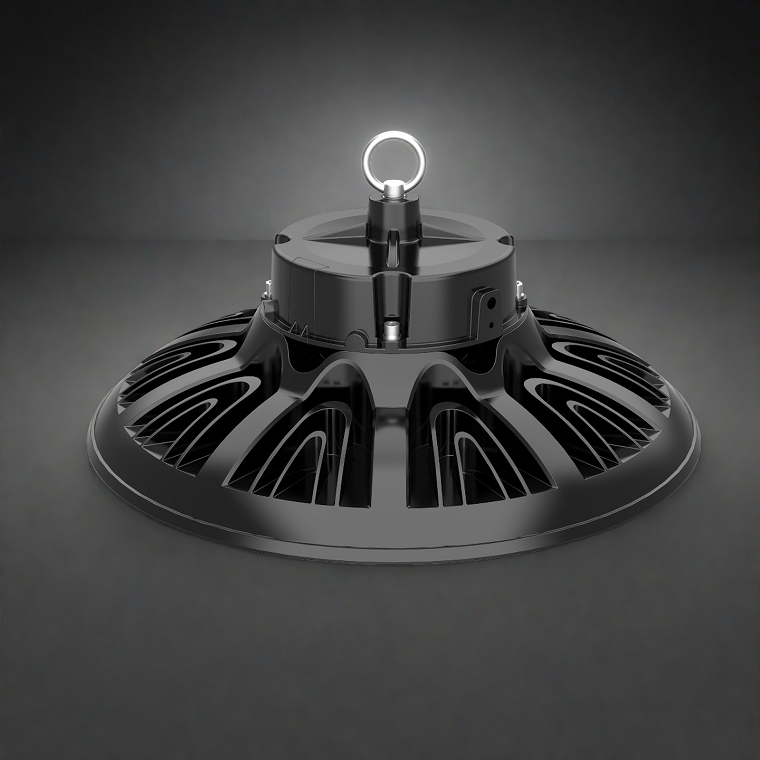

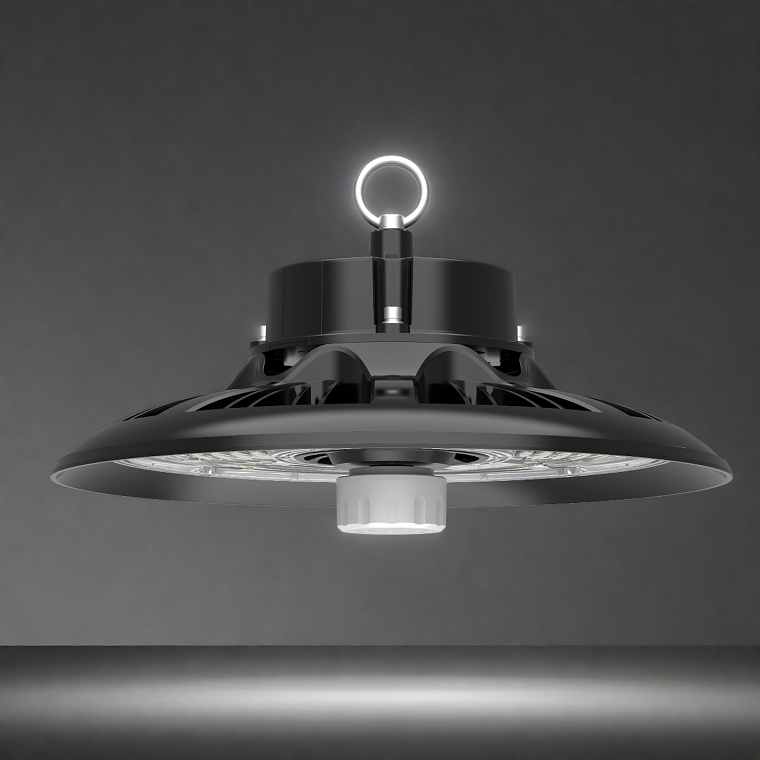

H3 High Bay – Triple the control
The H3 high bay comes equipped with 3 DIP switches, enabling on-site adjustment of beam angle, wattage, and color temperature — all in one fixture.
Easily tailor lighting to project-specific needs without overstocking or compromising performance.
Built-in Zhaga-compliant interface ensures seamless integration with PIR sensors, motion sensors, and Bluetooth Mesh systems, making it future-ready and smart-control compatible.
Specifications
Input voltage: 100-277V
H3: 200 / 150 / 100W adjustable
H3XL: 240 / 200 / 150W adjustable
CCT: 4000 / 5000 / 5700K adjustable
Beam angle: 110°/90°/60° adjustable
Efficiency: 150 / 170 / 190lm/w optional
Ambient Temp: -30°C to + 50°C
CRI: 70Ra, 80Ra
PF: >95
IP Rating: IP65
IK Rating: IK08
Control: PIR / Microwave / Zhaga / Casambi
